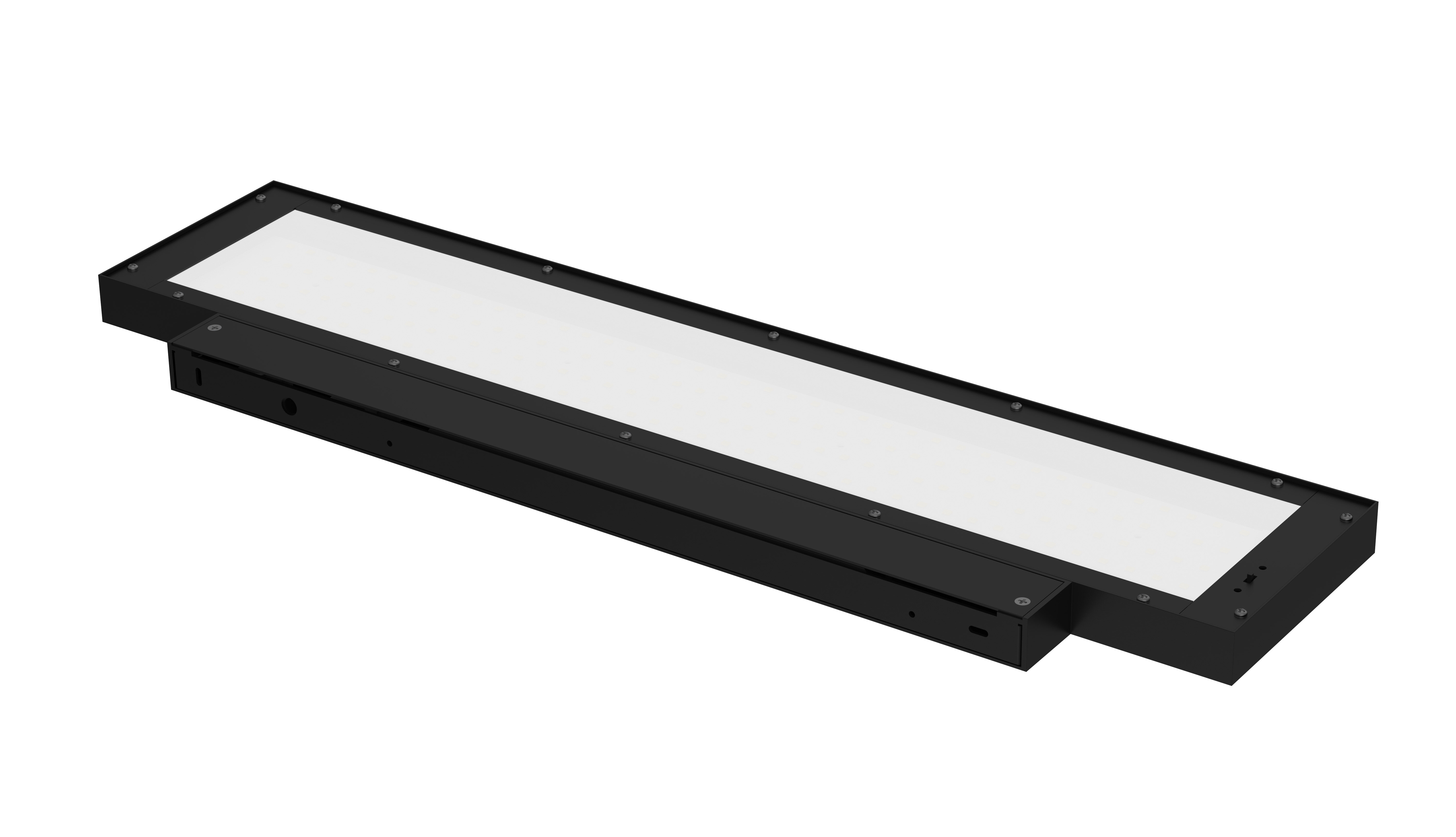

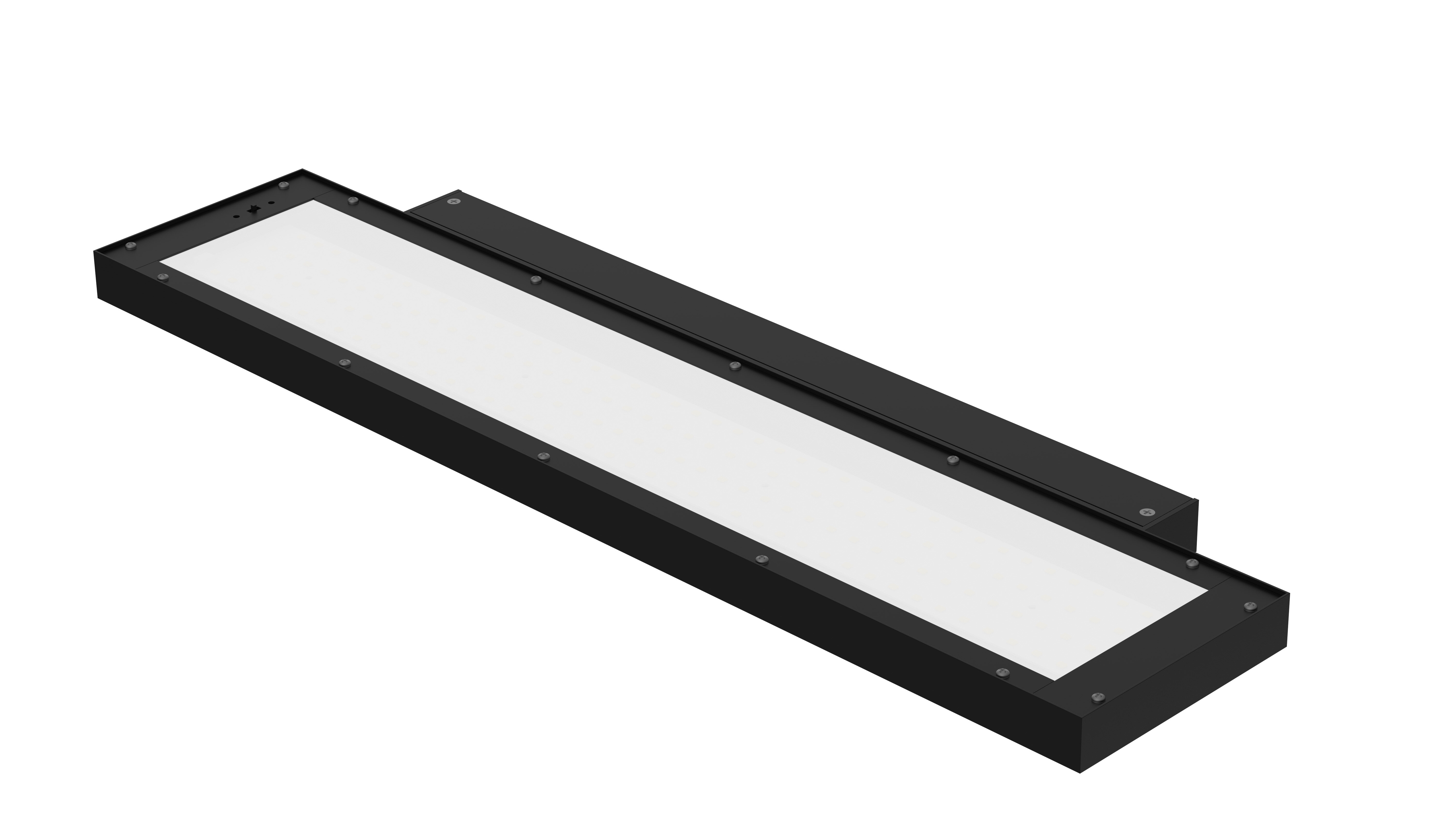

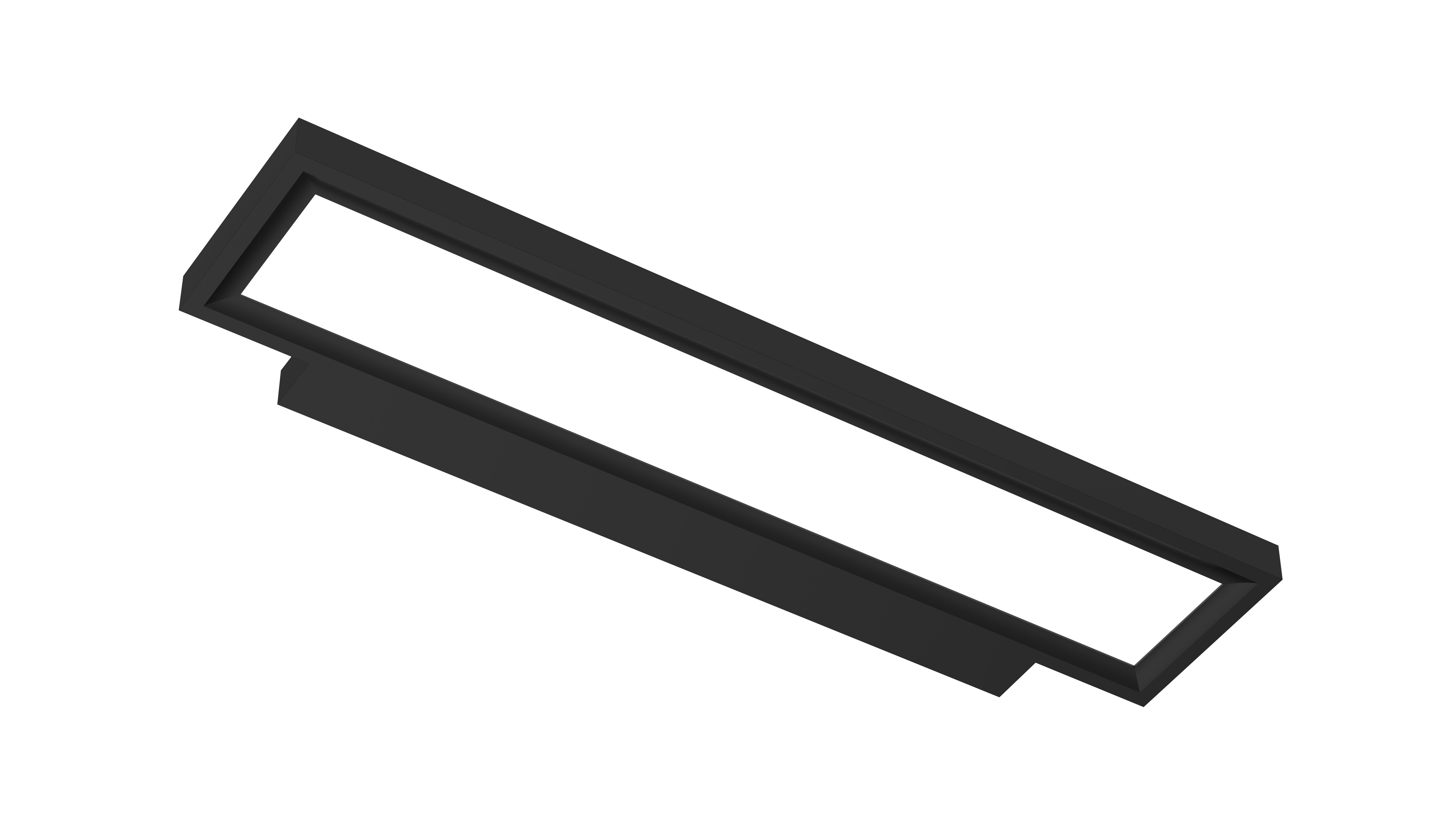

LAFA-W81-BLACK
LAFA-W Recessed Wall Luminaire | Ultra-Slim 25mm × Glare-Free Illumination
The LAFA-W features a clean, minimalist profile with an ultra-slim 25mm depth, designed for seamless integration into modern interiors. It delivers exceptionally soft, glare-free (UGR<19) illumination, ensuring superior visual comfort across commercial and public spaces.
Direct light utilizes a PMMA light guide plate (LGP) paired with a microprismatic diffuser, while indirect light is enhanced by a durable PC diffuser that resists yellowing over time. Offering versatile control options—including CCT DIP switch, On/Off, 1-10V, and DALI dimming—the LAFA-W adapts to diverse project requirements while maintaining flicker-free, silent operation. Rated for 50,000 hours (L80), it is a high-performance, low-maintenance solution for offices, retail environments, shopping centers, corridors, and hotels.

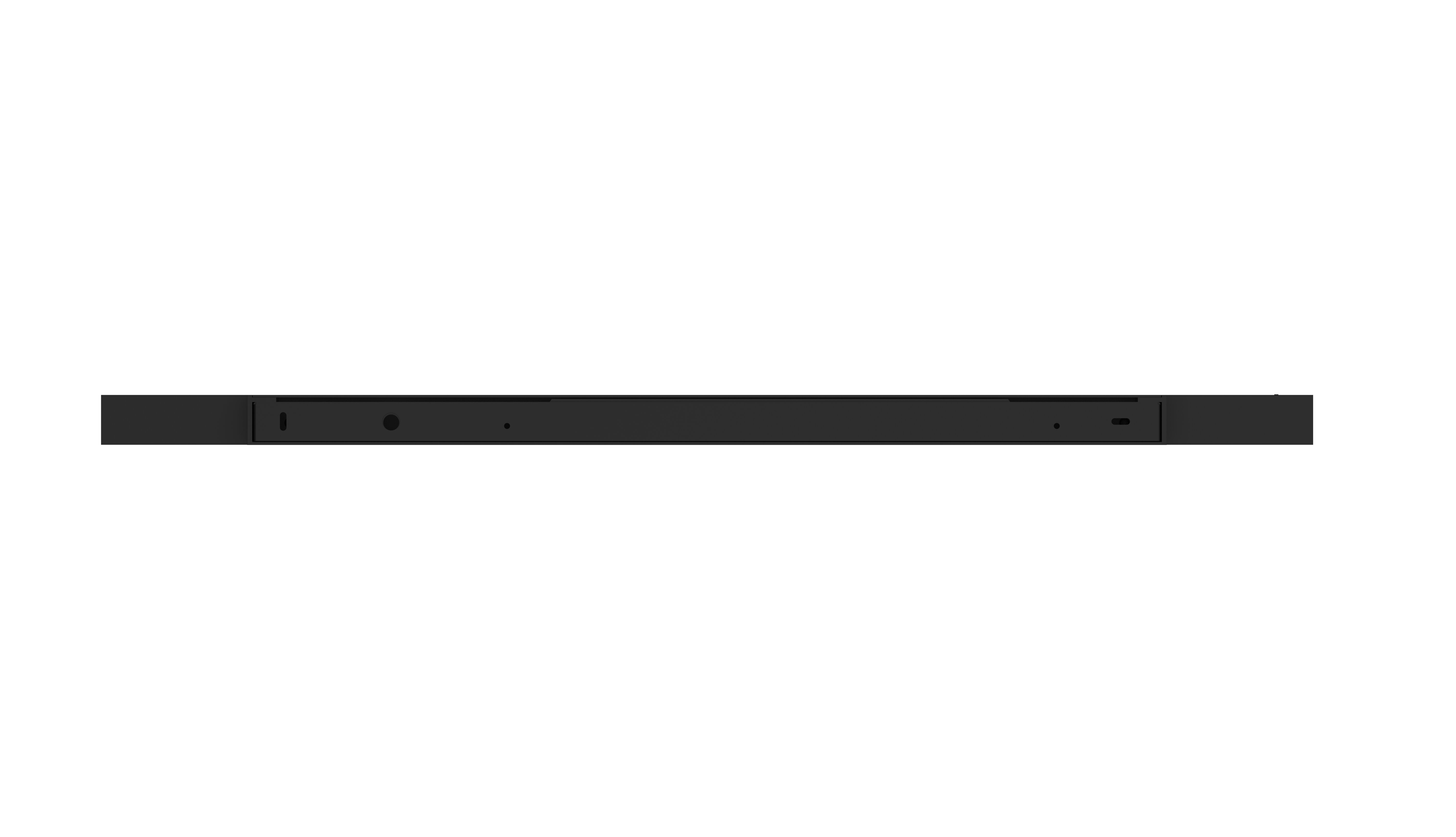

LAFA-W Recessed Wall Luminaire | Ultra-Slim 25mm Profile
The LAFA-W embodies a clean, minimalist aesthetic with an ultra-slim 25 mm profile, designed for seamless integration into modern interiors. Combining a PMMA light guide plate (LGP) with a microprismatic diffuser for direct light, and a PC diffuser for indirect light, it ensures long-lasting clarity with no yellowing. Delivering soft, glare-free illumination with UGR < 19, it provides exceptional visual comfort for offices, retail spaces, shopping centers, corridors, hotels, and other commercial applications.
Offering versatile control options including CCT DIP switch, On/Off, 1-10V, and DALI dimming, the LAFA-W meets diverse project requirements while maintaining flicker-free, silent operation. Rated for 50,000 hours (L80), it is a reliable, high-performance solution for public and commercial lighting.
Key Features
-
Ultra-Slim Profile: Only 25 mm thickness for discreet architectural integration.
-
Advanced Optical System: PMMA LGP with microprismatic diffuser (direct light) + PC diffuser (indirect light) ensures durability and no yellowing.
-
Low Glare Performance: UGR < 19, compliant for offices and public spaces.
-
Flexible Control Options: CCT DIP switch, On/Off, 1-10V, and DALI dimming.
-
Flicker-Free & Silent: Distraction-free performance with no audible driver noise.
-
High Efficacy: 120 lm/W for energy-efficient illumination.
-
Extended Lifespan: Rated L80 ≥ 50,000 hours at Ta=25°C.
-
Premium Build: Aluminum housing with Matt White (RAL9016) or Matt Black (RAL9005) finish.
-
Certified Quality: CE and RoHS certified with a 5-Year Warranty.
Technical Specifications
|
Item |
Parameter |
|---|---|
|
Model |
LFSW-6004020-ND / LFS-6004020-VD / LFSW-6004020-DD |
|
Dimming Options |
ON/OFF / 1-10V Dimming / DALI Dimming |
|
Power |
40W (20W Up / 20W Down) |
|
Input Voltage |
AC 200–240V |
|
Power Factor (PF) |
≥ 0.9 |
|
Luminous Efficacy |
120 lm/W |
|
Luminous Flux |
4,800 lm (3,300 lm Up / 1,500 lm Down) |
|
UGR |
< 19 |
|
CRI |
≥ 80 |
|
Beam Angle |
110° (Up) / 90° (Down) |
|
LED Source |
SMD2835 |
|
CCT |
3000K / 4000K |
|
SDCM |
≤ 3 |
|
Installation |
Wall Mounted |
|
Housing Material |
Aluminum |
|
Finish |
Matt White (RAL9016) / Matt Black (RAL9005) |
|
IP Rating |
IP20 |
|
IK Rating |
IK02 |
|
Certifications |
CE, RoHS |
|
Lifespan |
L80 ≥ 50,000 hrs @ Ta=25°C |
|
Warranty |
5 Years |
Applications
Offices, Retail Spaces, Shopping Centers, Corridors, Hotels, and Commercial Interiors.
